Produkt-Beschreibung

Product Overview

---

Plastic Recycling Washing Line

Customized Plastic Washing Solution for HDPE / PP / PE Bottle

<img alt="" data-cke-saved-src="/photo/recyclingplasticmachines/editor/20260521165529_72356.jpg <p class=" src="/photo/recyclingplasticmachines/editor/20260521165529_72356.jpg <p class=" p3"="">This plastic recycling washing line is designed for waste plastic cleaning and recycling.
It can be used for plastic bottles, barrels, buckets, containers, trays, sheets and other rigid plastic materials.

The whole line can complete material feeding, crushing, washing, separating, dewatering, drying and collecting.
Machine configuration can be customized according to raw material condition, production capacity and final product requirements.

---

01 / Product Overview

Our plastic recycling washing line is mainly used for cleaning waste plastic materials and producing clean plastic flakes.

It can effectively remove labels, dust, sand, oil, mud and other impurities from waste plastic materials.
After washing and drying, the clean flakes can be used for further recycling, pelletizing or selling.

Main Application:
HDPE/PP/PE Bottle



Final Product:
Clean plastic flakes



Capacity Range:
300-2000 kg/h



Customized Service:
Available



Main Process:
Feeding → Crushing → Washing → Floating Separation → Dewatering → Drying → Collection

---

02 / Suitable Raw Materials

This production line is suitable for different kinds of waste plastic materials:

• HDPE barrels
• PP buckets
• PE containers

The machine structure and process flow can be adjusted according to different materials.

---

03 / Final Product

After washing, the final material will become clean plastic flakes.

Final Product Features:

• Clean surface
• Low impurity
• Uniform flake size
• Suitable for pelletizing
• Suitable for further recycling

---

04 / Product Advantages

1. Complete Washing Process

The whole line includes crushing, washing, separating, dewatering and drying.
It helps remove dirt, labels, sand, oil and other impurities from waste plastic.

2. Wide Application

Suitable for HDPE, PP, PE and other rigid plastic materials.

3. Customized Design

The production line can be customized according to customer’s raw material, capacity, factory layout and final product standard.

4. Stable Operation

The complete line is designed for continuous production with stable running performance.

5. Easy Maintenance

Simple structure, practical design and convenient daily maintenance.

---

05 / Technical Parameters

Model	Capacity	Installed Power	Water Supply	Area Required
MEB-300	300kg/hr	130KW	5-6m³/hr	38*4.5*5m
MEB-500	500kg/hr	145KW	7-8m³/hr	38*4.5*5m
MEB-1000	1000kg/hr	190KW	8-10m³/hr	42*5*5m
MEB-1500	1500kg/hr	230KW	10-15m³/hr	45*5*5m
MEB-2000	2000kg/hr	280KW	15-20m³/hr	45*5*5m



Note:
The above parameters are for reference only.
The final configuration will be customized according to raw material condition and production requirements.

---

06 / Final Product Quality Reference

Item	Standard Range	Test Method
Moisture	≤1%	Hot air drying test
Flake Size	8-16 mm	Visual / measuring
Impurity Content	≤20 ppm	Visual inspection
PVC Content	≤20 ppm	Optical sorting / manual inspection
IV Value	0.72-0.85 dl/g	Laboratory test

Note:
This quality data is for reference.
Actual result depends on raw material condition, machine configuration and washing process.

---

07 / Main Machine Introduction

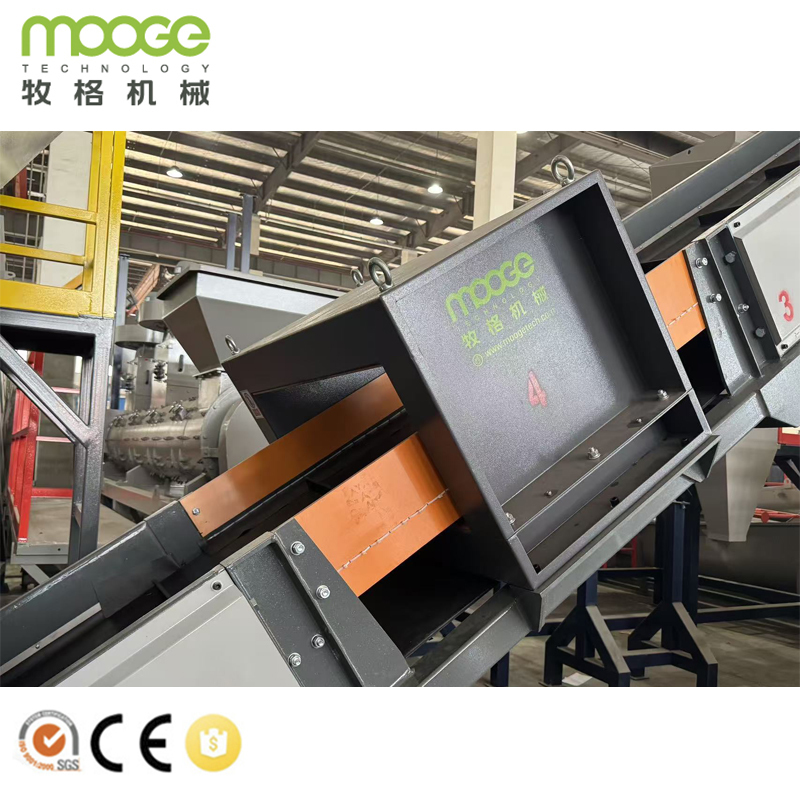

Belt Conveyor

Used for feeding waste plastic materials into the next machine evenly and continuously.

---

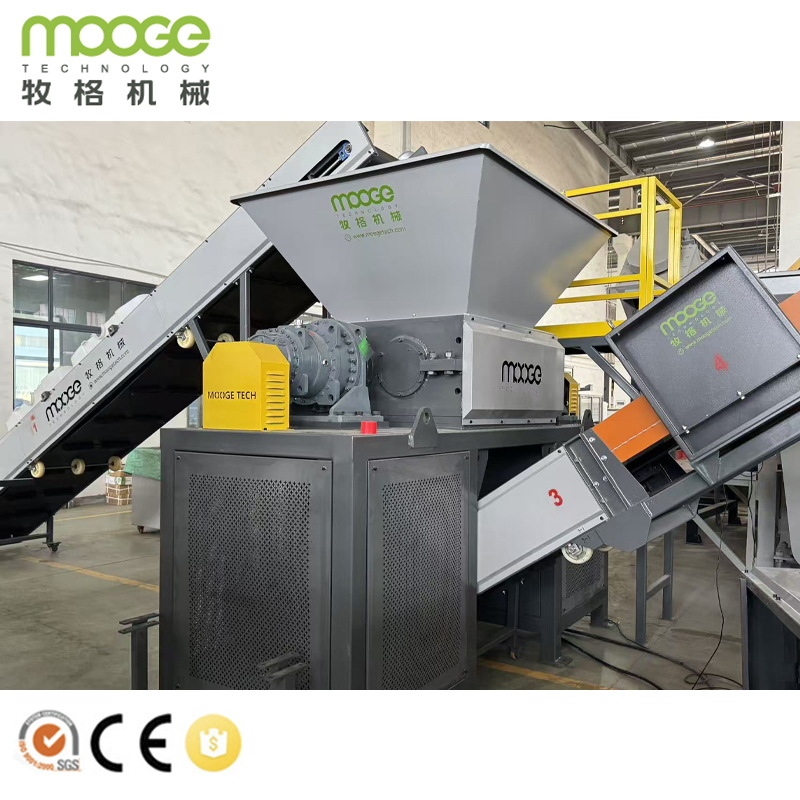

Crusher / Shredder

Used to cut large plastic materials into small flakes or pieces.
This makes the material easier to wash and process.

---

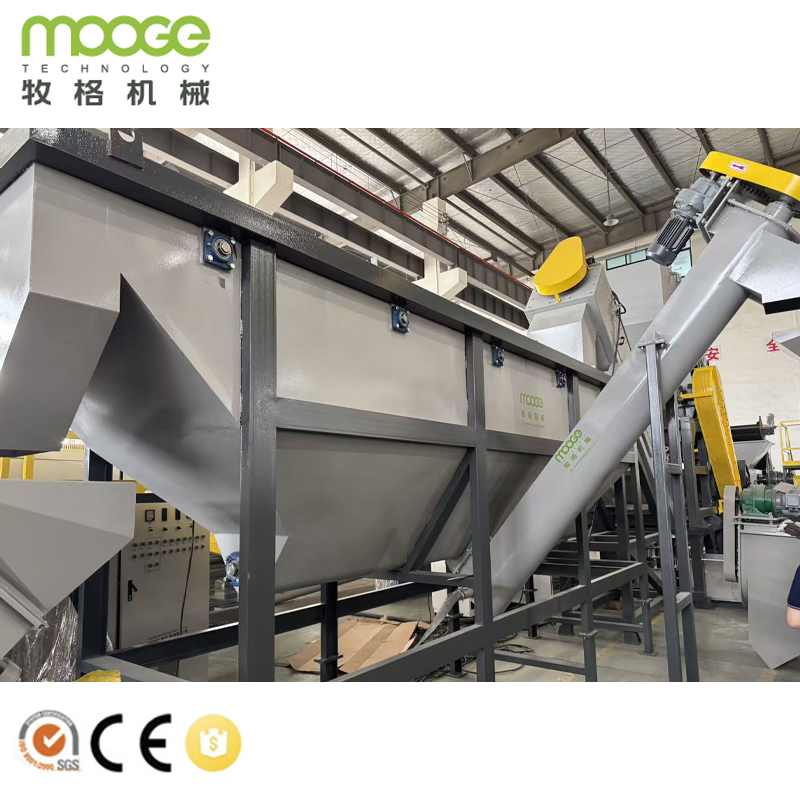

Floating Washing Tank

Used for washing and separating materials by water density.

For example:
PP and PE usually float in water.
PET, PVC, ABS and some other materials usually sink in water.

---

Friction Dewatering Machine

Used for Floating washing separate the sand, soil and other dirties

---

Horizontal Dewatering Machine

take out dirty and remover water from the bottle flakes





---

08 / Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

1. What material do you want to recycle?
2. What is the material size?
3. Is the material clean or dirty?
4. What capacity do you need per hour?
5. What is your final product requirement?
6. Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

---

09 / Customer Cases

Our plastic recycling washing lines have been used in different recycling projects.

We can provide suitable machine configuration according to different materials and different production needs.

---

10 / Packaging & Delivery

Before delivery, the machines will be checked and tested carefully.
We use suitable packaging methods to protect the machines during transportation.

Packaging Method:
Plastic film / Wooden case / Steel frame / Container loading

Delivery Method:
By sea / By land / According to customer requirement

---

11 / Why Choose Us

• Complete plastic recycling solution
• Customized machine configuration
• Practical process design
• Stable machine performance
• Suitable for different plastic materials
• Factory layout support
• Installation and operation guidance
• Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

---

12 / Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
