MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity
Kontakt

MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity

Min Bestellmenge : 1 Preis : $160,000.00/sets 1-1 sets
Verpackung Informationen : Standard-Exportverpackung oder individuell angepasste Verpackung Lieferzeit : 90 Arbeitstage
Versorgungsmaterial-Fähigkeit : 30 Set/Set pro Monat Plastikflaschen für Haustiere Wasch- und Recyclinglinie
Herkunftsort: Jiangsu, China Markenname: MOOGE
Zertifizierung: CE Modellnummer: MT

Detailinformationen
Anwendung: Recycling von PET-Flaschen Zustand: Neu
Automatische Note: Automatisch Kunststofftyp: HAUSTIER
Produktionskapazität (kg/h): 500 bis 5000 Maschinenart: Flaschenwaschmaschine für Haustiere
Ausrüstungs-Liste: Entwässerungsmaschine, schwimmender Waschbehälter, Heißlufttrockner, Reibungswaschmaschine, Etikette Max.Produktionskapazität (kg/h): 5000
Stromspannung: Angepasst Dimension (l*w*h): 62m x 5m x 4,5m
Macht (KW): 400 Gewicht (t): 20
Garantie: 12 Monate Schlüsselverkaufspunkte: Hohe Produktivität
Video-Ausgangspflicht: Bereitgestellt Anwendbare Branchen: Maschinen zum Recycling von Kunststoffabfällen
Ausstellungsraum Ort: Türkei, Italien, Vietnam, Brasilien, Mexiko, Thailand, Argentinien, Kolumbien, Ukraine Maschinen -Testbericht: Nicht verfügbar
Marketingtyp: Gewöhnliches Produkt Garantie für Kernkomponenten: 1 Jahr
Kernkomponenten: PLC, Lager, Getriebe, Motor, Gang Farbe: Angepasst
Motormarke: Simens oder maßgeschneidert Geschwindigkeitskontrolle: Steuerung des Inverters
Lagermarke: HRB oder individuell angepasst Material des Waschteils: Edelstahl oder Kohlenstoffstahl
Die Macht des Menschen: 6-10 Personen Endgröße der Flachel: 12 bis 14 mm
Verwendung von Dampf: Optional Heizweg: Strom, Dampf oder Quelle
Feuchtigkeitsinhalt: 1% Nach Garantiedienst: Technischer Support des Videos, Online -Support
Lokaler Service Ort: Ägypten, Vietnam, Philippinen, Peru, Pakistan, Indien, Mexiko, Thailand, Bangladesch, Südafrika, Kir Hafen: Shanghai-Seehafen
Hervorheben:

PET bottle recycling machine 5000kg/h

,

plastic flakes washing line with warranty

,

MT-series plastic recycling machine 500kg/h

Produkt-Beschreibung

Product Overview
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 0



Plastic Bottles Recycling Pet Bottle Recycle Crushing Washing Plant
This MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc. The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 1
Product Specification
The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line we made with capacity from 500kg/h to 5000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's actual factory area and requirements.
Model
Capacity
Installed Power
Steam Use
Water Supply
Manpower
Area Required
MT-500
500 kg/hr
190 KW
Optional
4-5 m3/hr
4-6 Person
60*5*5 m
MT-1000
1000 kg/hr
260 KW
Optional
5-7 m3/hr
8-10 Person
80*8*5 m
MT-2000
2000 kg/hr
400 KW
Suggest Use
10-15 m3/hr
10-12 Person
80*8*5 m
MT-3000
3000 kg/hr
600 KW
80,000 Kcal
20-30 m3/hr
12-16 Person
100*8*10 m
MT-4000
4000 kg/hr
800 KW
100,000 Kcal
30-40 m3/hr
15-20 Person
135*10*10 m
MT-5000
5000 kg/hr
1000 KW
120,000 Kcal
40-50 m3/hr
15-20 Person
135*10*10 m
We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request
Item
Specification
Raw Material
Waste Rigid Plastic PET bottles, PET sheet, PET packages, etc
Finished Product
Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List
Bale Opener, Trommel, Label Remover Machine, Sorting Belt, Pre-washer Machine, Belt Conveyor, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Zig-zag Air Classifier, Color Sorter, Packing Silo
Machine Material
Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components
NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components
ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period
One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service
Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;
Features At-A-Glance
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 2

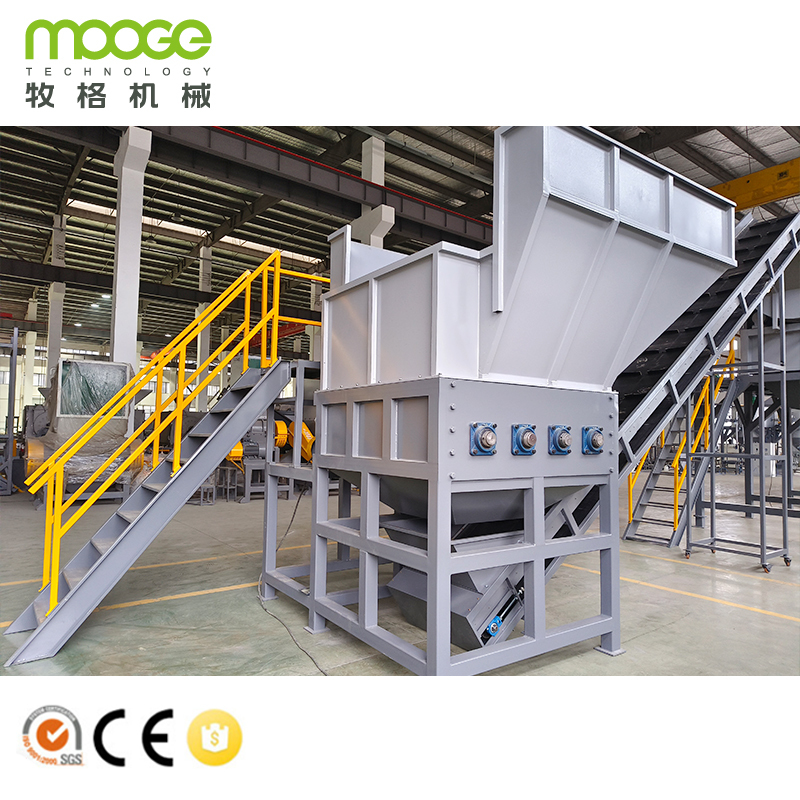

Bale Opener Machine
Function: Open the pressed PET bales
>With 4 roller cylinder feeding the bottles equally, claw steel is very strong with 20mm thickness.
>Machine chamber made by solid strong steel, chamber size 1.6*1.6m (depth x width).
>We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.

MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 3
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 4

Label Remover Machine
Function:remove the labels from the bottles
>Blades made by tungsten carbide and are fixed by screw easy to adjust and replace
>The barrel designed with hydraulic system to lift up the chamber which is convenient to replace the blades
>The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 5
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 6
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 7
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 8

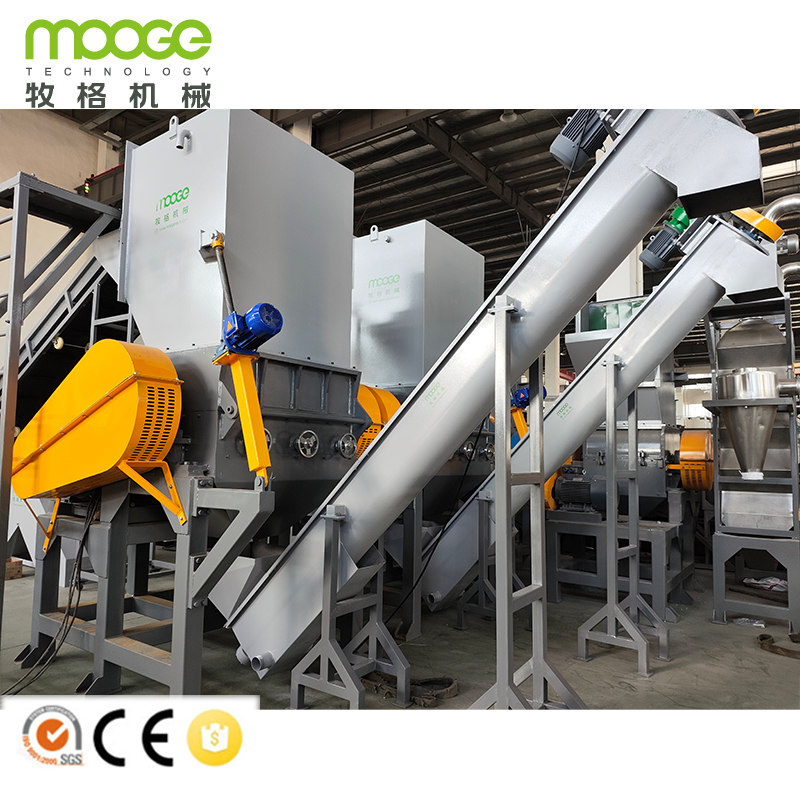

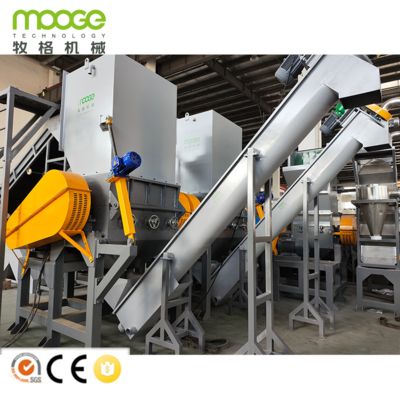

Plastic Crusher Machine
Function: crushing the PET bottles to small flakes.
>With water inlet doing the wet grinding which can extend the blades lifespan, reduce the dust generation.
>Crusher upper hopper opened by screw motor which save manpower
>Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use.

MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 9
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 10

Floating Washing Tank
Function: with cold water washing out dirty from the flakes
>With the top rollers automatically take out the caps and rings and other impurities but with less water taken out
>Rotor shaft made by seamless steel tube.
>Screw is made by stainless steel, we have different model of floating washing tank according to your requirements.
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 11
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 12
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 13
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 14

Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
>The tank made with insulation layer to keep the hot water temperature and save energy.
>Feeding caustic soda or chemical detergent to washing the bottle flakes for better effect
>The water is heated up by steam, steam is generated by the steam boiler
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 15
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 16

Horizontal Dewatering Machine
Function: take out dirty and remover water from the bottle flakes
>With high raotary speed reach up to 1500rpm with better effect for removing the water
>With the famous SKF roller bearing fixed outside for long lifespan
>Inside with mesh layer made by SUS304, which is also cleaned by the water spray system
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 17
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 18
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 19
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 20

“Zig-zag” Label Separator
Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.
>Blower with air valve to control the air flux of blower.
>Bottom with air blower and pipe for collecting the pet flakes
>Zig zag main chamber one set made by stainless steel and with visible window

MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 21
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 22
Customer Onsite
We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.
MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine 500kg/h to 5000 kg/h Capacity 23
